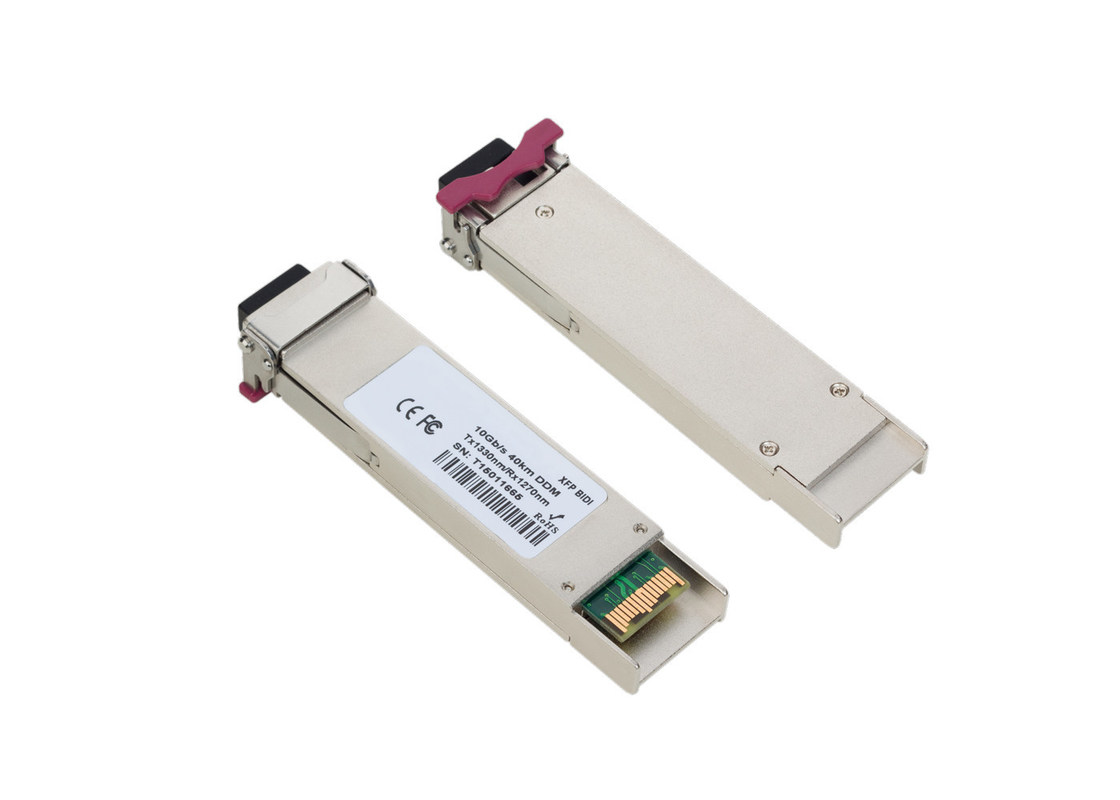

10G BIDI 1330/1270nm 40km DDM XFP Transceiver
Hot Pluggable, Single LC, +3.3V, 1330nm/1270nm CWDM DFB, DDM
Features:
- Supports 9.95Gb/s to 11.3Gb/s bit rates
- Hot-pluggable XFP footprint
- Single LC for Bi-directional Transmission
- Maximum link length of 40km
- Built-in 1330/1270 WDM Filter
- Uncooled 1330nm or 1270nm CWDM DFB Laser.
- Power dissipation <1.5W
- No Reference Clock required
- Built-in digital diagnostic functions
- Temperature range 0°C to 70°C
- Very low EMI and excellent ESD protection
- RoHS Compliant Part
Applications:
- 10GBASE-LR/LW Ethernet
- SONET OC-192 / SDH
- 10G Fibre Channel
Specificaton
| Media Type: |
Single-Mode Fiber (SMF) |
| TX Wavelength: |
1330 nm. |
| RX Wavelenght: |
1270 nm. |
| Minimum Optical Budget: |
14 dB |
| Maximum Distance: |
40km |
| Supported Data Rate: |
1.24-11.32Gbps |
| Supported Applications: |
10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps),
10G Fiber Channel (10.52 Gbps), 8G Fiber Channel
(8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber
Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps),
STM-16 (2.488 Gbps), STM-64 (9.95Gbps), ODU0 (1.244Gbps),
ODU1 (2.498Gbps), ODU2 (10.037Gbps), ODU2e
(10.399Gbps), OTU1 (2.66Gbps), OTU2 (10.70Gbps),
OTU1f (11.27Gbps), OTU2f (11.32Gbps), OTU1e (11.049Gbps),
OTU2e (11.095Gps)
|
| DDM/DOM: |
Support |
| Temperature Range: |
Standard 0°-70°C |
| Connectors: |
Single LC |
| Tx Wavelength Bandwidth: |
40 nm (1250-1290 nm) |
| Rx Wavelength Bandwidth: |
40 nm (1310-1350 nm) |
| Minimum Transmitting Power: |
-2 dB |
| Maximum Transmitting Power: |
5 dB |
| Receiver Sensitivity: |
-16 dBm |
| Receiver Overload: |
0.5 dBm |
| Dispersion: |
280-320 ps/nm |
| Transmitter Type: |
DFB Laser |
| Receiver Type: |
PIN photodiode |
| CDR (Clock and Data Recovery) chip |
Supported |
| Power: |
+3.3V single power supply |
| Chipset: |
MAXIM, MINDSPEED, SEMTECH |
| Compliance: |
CE, Class 1 FDA and IEC60825-1 Laser Safety
Compliant, INF-8077i XFP MSA Rev.4.5, RoHS
|
BIDI-10G-XFP-40B is Multi-Vendor MSA Compatible XFP (10 Gigabit Small Form Factor Pluggable Module) Transceiver, operating over Single Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 14 dB, with in most cases is enough to reach about 40 km distance.
However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1270 nm. and 1330 nm. PIN Photodiode receiver.
It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. BIDI-10G-XFP-40B operates in Standard 0°-70°C temperature range and has Single LC interface.
All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,
We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.
We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
