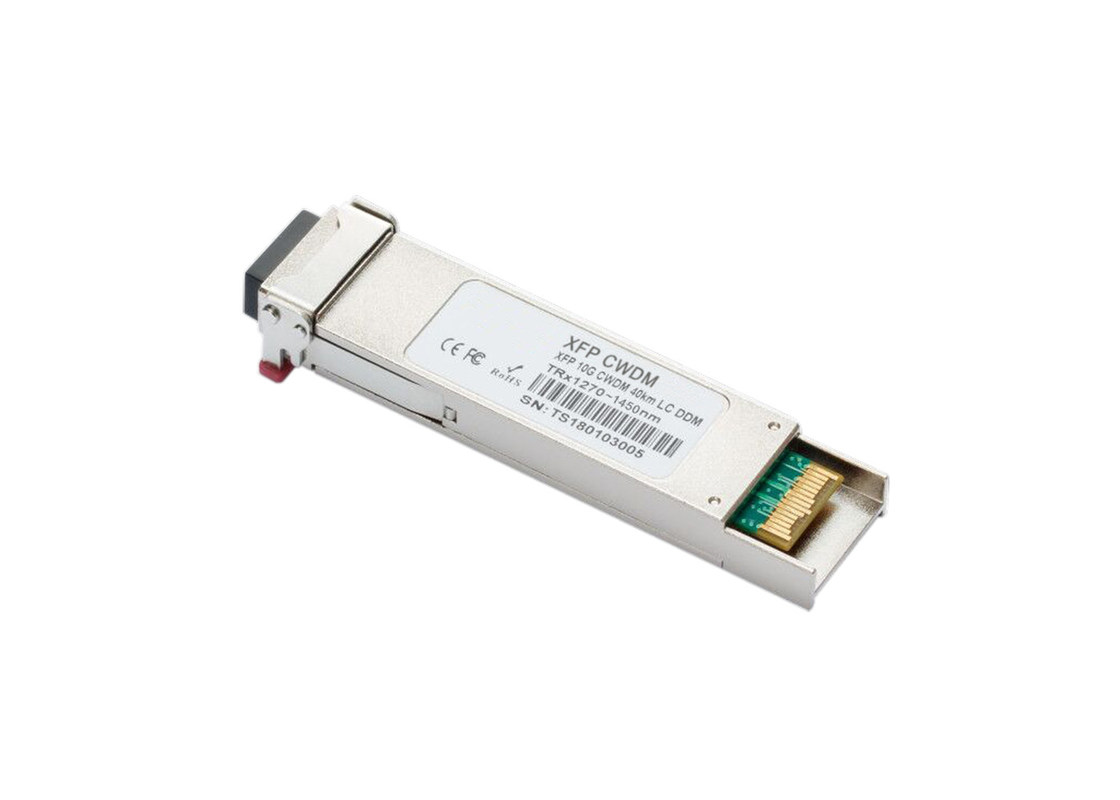

Name: 10G XFP CWDM 1310nm 10km DDM XFP Transceiver with Multi-Vendor MSA Compatible
Brand: Flyrom Technology Co.,Limited
SKU: CWDM-10G-XFP-10-31
Availability: InStock

Inicio Productos SFP/SFP+/XFP/QSFP/Transceptor de cobre

10G XFP CWDM 1310nm 10km DDM XFP Transceiver with Multi-Vendor MSA Compatible

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	FLYROM
Certificación:	CE/ROHS
Número de modelo:	CWDM-10G-XFP-10-31

Pago y Envío Términos:

Cantidad de orden mínima:	1 pieza
Precio:	Please inquiry sales@flyromtech.net
Detalles de empaquetado:	Embalaje neutro
Tiempo de entrega:	3-7 días laborables
Condiciones de pago:	100% TT por adelantado
Capacidad de la fuente:	1000 unidades/mes

Contactar ahora

Descripción detallada del producto

Velocidad:	10g	Distancia:	10 kilómetros
Tipo:	CWDM	Longitud de onda:	1310nm
Presupuesto óptico:	9db	Compatibilidad:	MSA de múltiples proveedores

10G XFP CWDM 1310nm 10km DDM XFP Transceiver

Hot Pluggable, Duplex LC, +3.3V, 1270～1450nm, CWDM DFB, Single mode

Features:

Type: XFP
Supports 9.95 to 11.3Gb/s bit rates
Compatibility:Multi-Vendor MSA Compatible
Tx/Rx Wavelength: 1310 nm / 1270-1610 nm
Media Type: Single-Mode Fiber (SMF)
Optical Budget: 9 dB
Max. Distance: 10 km
Data Rate: 9.95-11.32Gbps
Temperature:Standard 0°-70°C
Power Supply :+3.3V
Power consumption<1.5W

Applications:

10GBASE-ER/EW Ethernet
Sonet OC-192/SDH
10G Fibre channel
CWDM Networks

Specificaton

Media Type:	Single-Mode Fiber (SMF)
TX Wavelength:	1310 nm
RX Wavelenght:	1270-1610 nm
Minimum Optical Budget:	9 dB
Maximum Distance:	10km
Supported Data Rate:	9.95-11.32Gbps
Supported Applications:	10G Ethernet (10.31Gbps), STM-64 (9.95Gbps), ODU2 (10.037Gbps), ODU2e (10.399Gbps), OTU2 (10.70Gbps), OTU1f (11.27Gbps), OTU2f (11.32Gbps), OTU1e (11.049Gbps), OTU2e (11.095Gps)
DDM/DOM:	Support
Temperature Range:	Standard 0°-70°C
Connectors:	Double LC
Tx Wavelength Bandwidth:	20nm (1260 – 1280 nm)
Rx Wavelength Bandwidth:	G.694.2 CWDM Grid (1270-1610nm)
Minimum Transmitting Power:	-6 dB
Maximum Transmitting Power:	1 dB
Receiver Sensitivity:	-15 dBm
Receiver Overload:	0.5 dBm
Dispersion:	70-100 ps/nm
Transmitter Type:	DFB Laser
Receiver Type:	PIN photodiode
Power:	+3.3V single power supply
Chipset:	MAXIM, MINDSPEED, SEMTECH
Compliance:	CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA

CWDM-10G-XFP-10-31 is Multi-Vendor MSA Compatible XFP (Small Form factor Pluggable) Transceiver, operating over Double Fiber CWDM Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 9 dB, with in most cases is enough to reach about 10 km distance.

However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1310 nm and 1270-1610 nm PIN Photodiode receiver.

It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. CWDM-10G-XFP-10-31 operates in Standard 0°-70°C temperature range and has Double LC interface.

All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,

We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.

We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.

If any question, please add JoJo's Wechat: jojo6616

Skype: jojo_he2010
