| Lugar de origen: | Porcelana |
| Nombre de la marca: | FLYROM |
| Certificación: | CE/ROHS |
| Número de modelo: | DWDM-10G-XFP-80-44 |
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | Please inquiry sales@flyromtech.net |
| Detalles de empaquetado: | Embalaje neutro |
| Tiempo de entrega: | 3-7 días laborables |
| Condiciones de pago: | 100% TT por adelantado |
| Capacidad de la fuente: | 1000 unidades/mes |
| Velocidad: | 10g | Distancia: | 80 kilómetros |
|---|---|---|---|
| Tipo: | DWDM | Longitud de onda: | CH44 (1542,14 nm) |
| Presupuesto óptico: | 23dB | Compatibilidad: | MSA de múltiples proveedores |

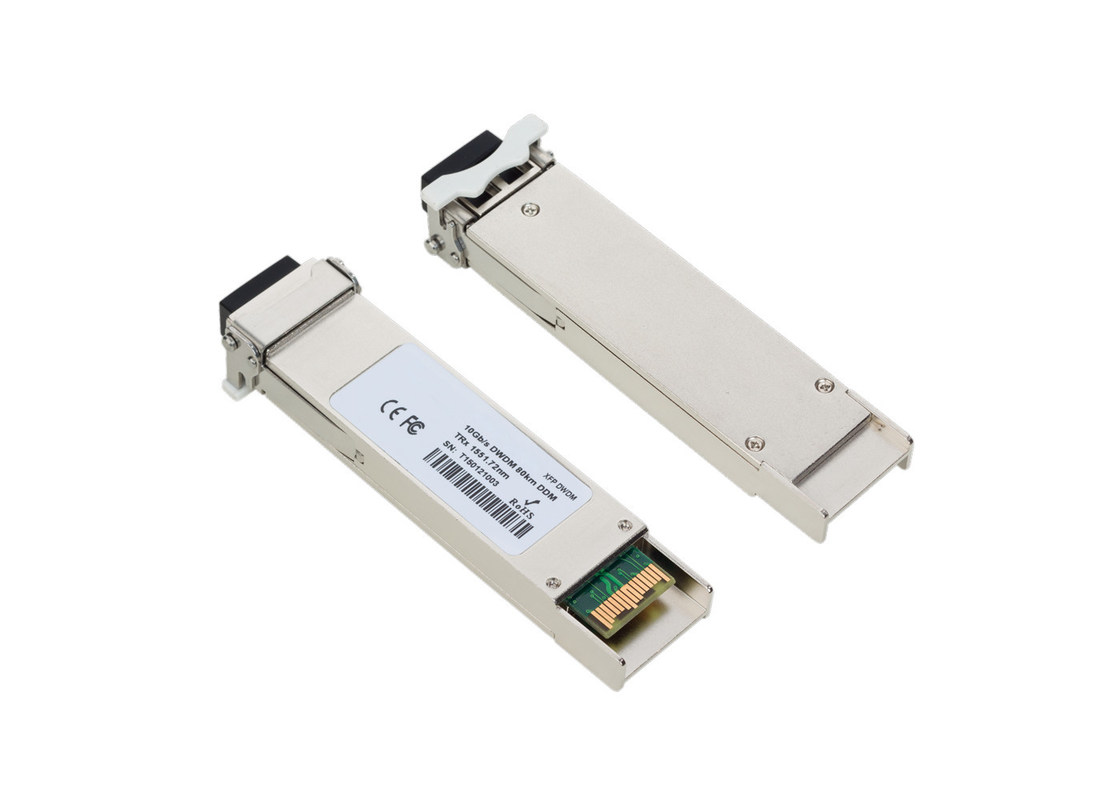

10G XFP DWDM CH44 1542.14nm 80km DDM XFP Transceiver
Hot Pluggable, Duplex LC, +3.3V, 100GHz, DWDM EML, Single mode
Features:
Applications:
| Media Type: | Single-Mode Fiber (SMF) |
|---|---|
| TX Wavelength: | Ch. 44 (1542.14nm) |
| RX Wavelenght: | ITU-T DWDM Grid 100 GHz C-Band |
| Minimum Optical Budget: | 23 dB |
| Maximum Distance: | 80km |
| Supported Data Rate: | 9.95-11.32Gbps |
| Supported Applications: |
10G Ethernet (10.31Gbps), STM-64 (9.95Gbps), ODU2 (10.037Gbps), ODU2e (10.399Gbps), OTU2 (10.70Gbps), OTU1f (11.27Gbps), |
| DDM/DOM: | Support |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 100GHz (0.8nm) |
| Rx Wavelength Bandwidth: | 1260 – 1620 nm |
| Minimum Transmitting Power: | 0 dB |
| Maximum Transmitting Power: | 5 dB |
| Receiver Sensitivity: | -23 dBm |
| Receiver Overload: | -6 dBm |
| Dispersion: | 1600 ps/nm |
| Transmitter Type: | EML Laser |
| Receiver Type: | APD Photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
| Compliance: |
DWDM-10G-XFP-80-44 is Multi-Vendor MSA Compatible XFP (Small Form factor Pluggable) Transceiver, operating over Double Fiber DWDM Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 23 dB, with in most cases is enough to reach about 80 km distance.
However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality EML Laser transmitter with operating at nominal wavelength CH44 (1542.14nm) and ITU-T DWDM Grid 100 GHz C-Band PIN Photodiode receiver.
It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. DWDM-10G-XFP-80-44 operates in Standard 0°-70°C temperature range and has Double LC interface.
All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,
We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.
We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
