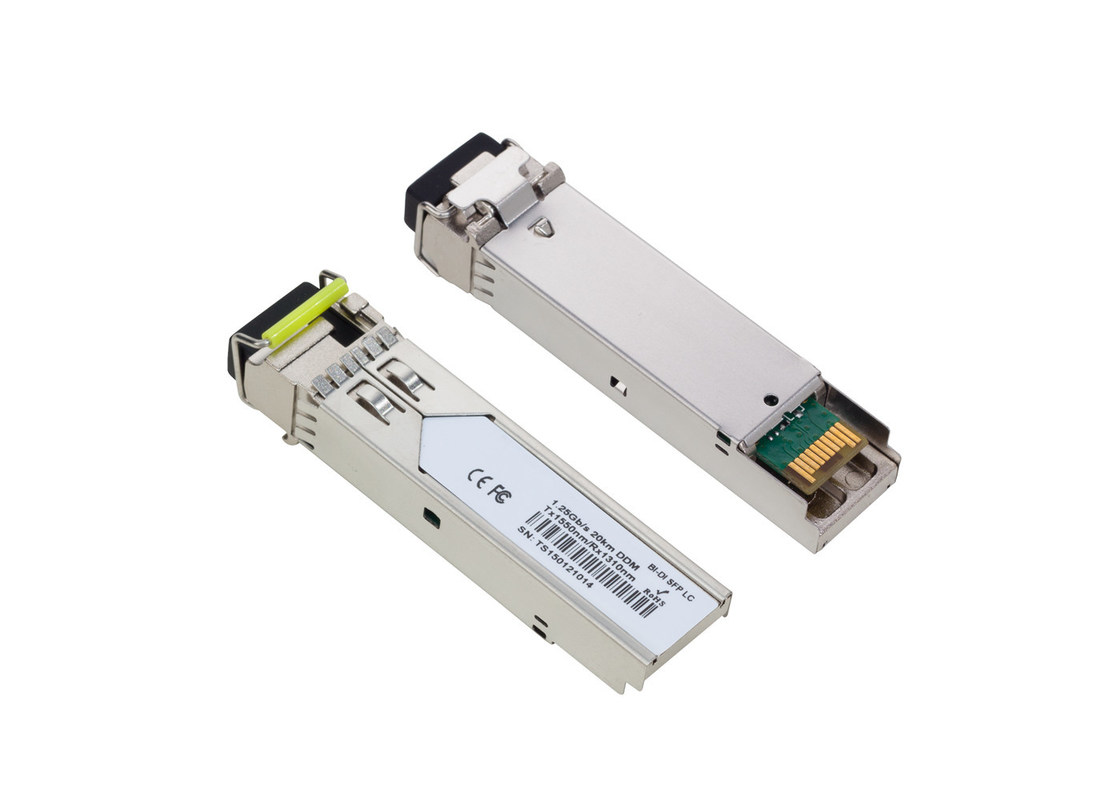

Name: 1.25G BIDI Single Fiber SM SFP 1550/1310nm 10KM Transceiver Multi Vendor MSA Compatible
Brand: Flyrom Technology Co.,Limited
SKU: BIDI-1.25G-SFP-10-BD
Availability: InStock

Inicio Productos SFP/SFP+/XFP/QSFP/Transceptor de cobre

1.25G BIDI Single Fiber SM SFP 1550/1310nm 10KM Transceiver Multi Vendor MSA Compatible

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	FLYROM
Certificación:	CE/ROHS
Número de modelo:	BIDI-1.25G-SFP-10-BD

Pago y Envío Términos:

Cantidad de orden mínima:	1 pieza
Precio:	Please inquiry sales@flyromtech.net
Detalles de empaquetado:	Embalaje neutro
Tiempo de entrega:	3-7 días laborables
Condiciones de pago:	100% TT por adelantado
Capacidad de la fuente:	1000 unidades/mes

Contactar ahora

Descripción detallada del producto

Velocidad:	1,25G	Distancia:	10 kilómetros
Tipo:	SM	Longitud de onda:	1550/1310nm
Presupuesto óptico:	12 dB	Compatibilidad:	MSA de múltiples proveedores

1.25G BIDI Single Fiber SM SFP 1550/1310nm 10KM Transceiver

Hot Pluggable, Single LC, +3.3V, 1550nm Tx/1310nm Rx, FP-LD, Single-mode, DDM

Features:

Type:SFP
Compatibility:Multi-Vendor MSA Compatible
Tx/Rx Wavelength: 1550 nm. / 1310 nm.
Media Type: Singe-Mode Fiber (SMF)
Optical Budget: 12 dB
Max. Distance: 10km
Data Rate: 1.063-1.25Gbps
Temperature:Standard 0°-70°C
Duplex LC connector
Single +3.3V Power Supply
Maximum Power <1W
Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available

Applications:

Metro/Access Networks
1.25 Gb/s 1000Base-LX Ethernet
1×Fibre Channel
Other Optical Link

Specification

Media Type:	Single-Mode Fiber (SMF)
TX Wavelength:	1550 nm.
RX Wavelenght:	1310 nm.
Minimum Optical Budget:	12 dB
Maximum Distance:	10km
Supported Data Rate:	1.063-1.25Gbps
Supported Applications:	Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps)
DDM/DOM:	Support
Temperature Range:	Standard 0°-70°C
Connectors:	Single LC
Tx Wavelength Bandwidth:	40 nm (1290-1330 nm)
Rx Wavelength Bandwidth:	40 nm (1530-1570 nm)
Minimum Transmitting Power:	-10 dB
Maximum Transmitting Power:	3 dB
Receiver Sensitivity:	-22 dBm
Receiver Overload:	-3 dBm
Dispersion:	70-100 ps/nm
Transmitter Type:	FP Laser
Receiver Type:	PIN photodiode
Power:	+3.3V single power supply
Chipset:	MAXIM, MINDSPEED, SEMTECH
Compliance:	CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA

BIDI-1.25G-SFP-10-BD is Multi-Vendor MSA Compatible SFP (Small Form factor Pluggable) Transceiver, operating over Single Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 12 dB, with in most cases is enough to reach about 10 km distance.

However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality FP Laser transmitter with operating at nominal wavelength 1550 nm. and 1310 nm. PIN Photodiode receiver.

It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. BIDI-1.25G-SFP-10-BD operates in Standard 0°-70°C temperature range and has Single LC interface.

All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,

We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.

We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
