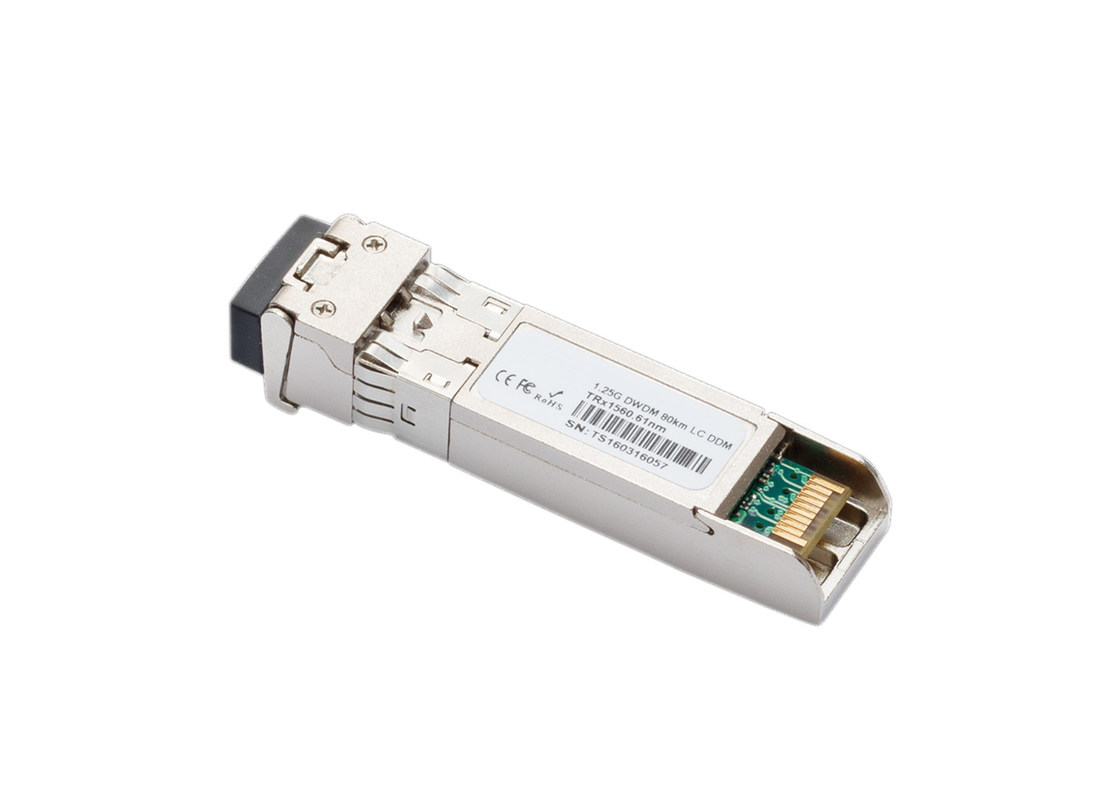

Name: 1.25G DWDM Transceiver Single Mode CH37 120KM with Multi Vendor MSA Compatible
Brand: Flyrom Technology Co.,Limited
SKU: DWDM-1.25G-SFP-120-37
Availability: InStock

Inicio Productos SFP/SFP+/XFP/QSFP/Transceptor de cobre

1.25G DWDM Transceiver Single Mode CH37 120KM with Multi Vendor MSA Compatible

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	FLYROM
Certificación:	CE/ROHS
Número de modelo:	DWDM-1.25G-SFP-120-37

Pago y Envío Términos:

Cantidad de orden mínima:	1 pieza
Precio:	Please inquiry sales@flyromtech.net
Detalles de empaquetado:	Embalaje neutro
Tiempo de entrega:	3-7 días laborables
Condiciones de pago:	100% TT por adelantado
Capacidad de la fuente:	1000 unidades/mes

Contactar ahora

Descripción detallada del producto

Velocidad:	1,25G	Distancia:	EL 120KM
Tipo:	SM	Longitud de onda:	1547,72 millas náuticas
Presupuesto óptico:	32dB	Compatibilidad:	MSA de múltiples proveedores

1.25Gb/s DWDM 120km CH37 SFP Transceiver

Hot Pluggable, Duplex LC, +3.3V, 100GHz, DWDM COOLED DFB&PIN, Single mode

Features:

Type:SFP
Compatibility:Multi-Vendor MSA Compatible
Tx/Rx Wavelength: Ch. 37 (1547.72nm) / ITU-T DWDM Grid 100 GHz C-Band
Media Type: Singe-Mode Fiber (SMF)
Optical Budget: 32 dB
Max. Distance: 120km
Data Rate: 1.063-1.25Gbps
Temperature:Standard 0°-70°C
Duplex LC connector
Single +3.3V Power Supply
Maximum Power <1W
Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available

Applications:

1G Fibre channel
DWDM Networks

Specification

Media Type:	Single-Mode Fiber (SMF)
TX Wavelength:	Ch. 37 (1547.72 nm)
RX Wavelenght:	ITU-T DWDM Grid 100 GHz C-Band
Minimum Optical Budget:	32 dB
Maximum Distance:	120km
Supported Data Rate:	1.063-1.25Gbps
Supported Applications:	Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps)
DDM/DOM:	Support
Temperature Range:	Standard 0°-70°C
Connectors:	Double LC
Tx Wavelength Bandwidth:	100GHz (0.8nm)
Rx Wavelength Bandwidth:	1260 – 1620 nm
Minimum Transmitting Power:	0 dB
Maximum Transmitting Power:	5 dB
Receiver Sensitivity:	-32 dBm
Receiver Overload:	-7 dBm
Dispersion:	1600-1700 ps/nm
Transmitter Type:	DFB Laser
Receiver Type:	PIN photodiode
Power:	+3.3V single power supply
Chipset:	MAXIM, MINDSPEED, SEMTECH
Compliance:	CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA

DWDM-1.25G-SFP-120-37 is Multi-Vendor MSA Compatible SFP (Small Form factor Pluggable) Transceiver, operating over Double Fiber DWDM Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 32dB, with in most cases is enough to reach about 120 km distance.

However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength Ch. 37 (1547.72 nm) and ITU-T DWDM Grid 100 GHz C-Band PIN Photodiode receiver.

It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. DWDM-1.25G-SFP-120-37 operates in Standard 0°-70°C temperature range and has Double LC interface.

All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.

We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.

We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
