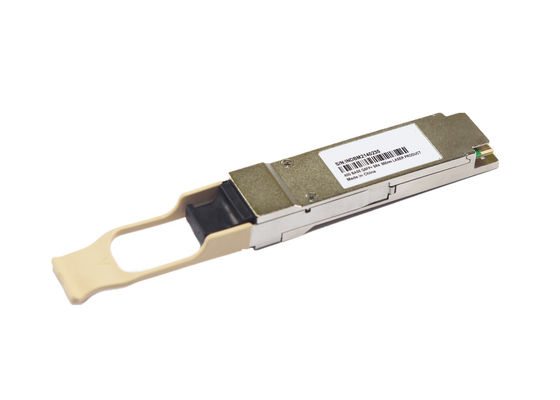

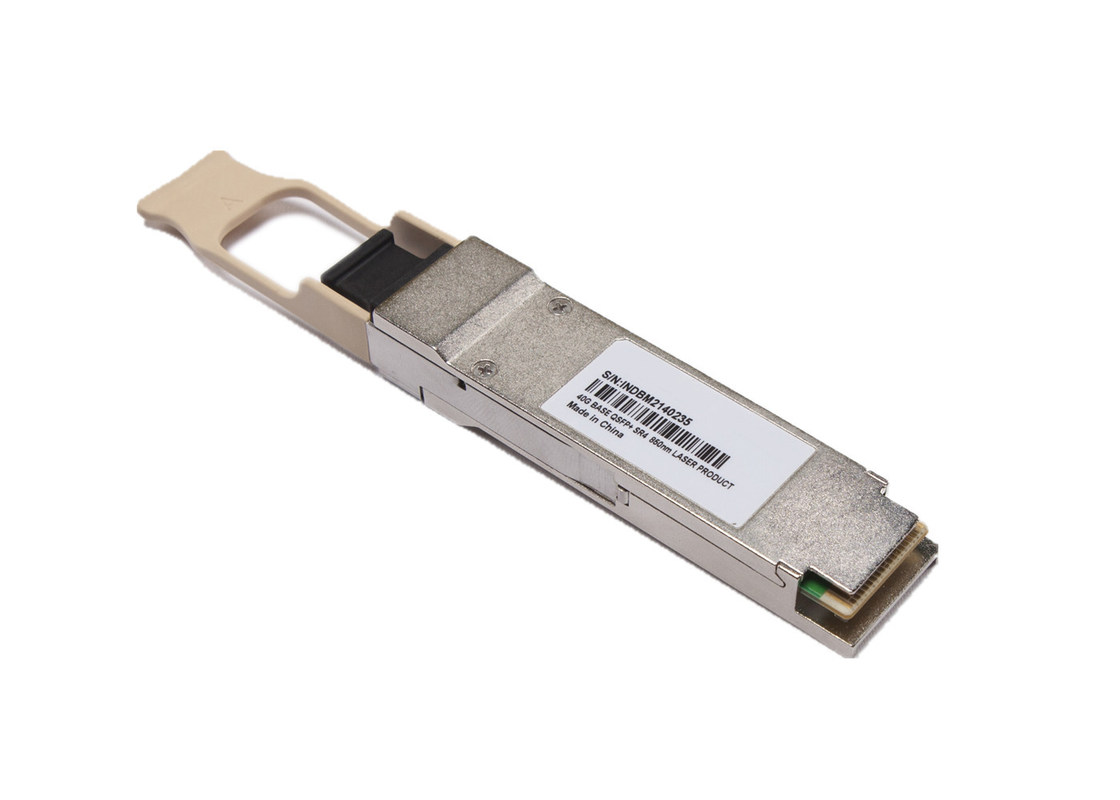

Name: 40G QSFP SR4 Multimode 850nm 150m DDM QSFP Transceiver MTP MPO Connector with Cisco Compatible
Brand: Flyrom Technology Co.,Limited
SKU: 40G-QSFP-150
Availability: InStock

Inicio Productos SFP/SFP+/XFP/QSFP/Transceptor de cobre

40G QSFP SR4 Multimode 850nm 150m DDM QSFP Transceiver MTP MPO Connector with Cisco Compatible

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	FLYROM
Certificación:	CE/ROHS
Número de modelo:	40G-QSFP-150

Pago y Envío Términos:

Cantidad de orden mínima:	1 pieza
Precio:	Please inquiry sales@flyromtech.net
Detalles de empaquetado:	Embalaje neutro
Tiempo de entrega:	3-7 días laborables
Condiciones de pago:	100% TT por adelantado
Capacidad de la fuente:	1000 unidades/mes

Contactar ahora

Descripción detallada del producto

Velocidad:	40g	Distancia:	150m
Tipo:	QSFP-SR	Longitud de onda:	850nm
Presupuesto óptico:	DB 1,9	Compatibilidad:	MSA de múltiples proveedores

40G QSFP SR4 Multimode 850nm 150m DDM QSFP Transceiver MTP MPO Connector with Cisco Compatible

Hot Pluggable, MTP/MPO Connector, 850nm, VCSEL, Multimode

Features:

Type: QSFP (Quad Small Form-factor Pluggable)
Compatibility: Multi-Vendor MSA compatible
Tx Wavelength: 850 nm.
Rx Wavelength: 850 nm.
Media Type: 4 Paralel Lanes of Multi-Mode Fiber (MMF.)
Optical Budget: 1.9 dB
Max. Distance: 150m
Data Rate: 39.81 – 44.8 Gbps
Temperature:Standard 0°-70°C
MTP/MPO optical connector
Aggregate bandwidth of > 40Gbps

Applications:

Rack to rack
Data centers
Metro networks
Switches and Routers
Infiniband 4x SDR, DDR, QDR

Specification

Media Type:	4 Paralel Lanes of Multi-Mode Fiber (MMF.)
Maximum Distance:	150m
TX Wavelength:	850 nm.
RX Wavelenght:	850 nm.
Minimum Optical Budget:	1.9 dB
Supported Data Rate:	39.81 – 44.8 Gbps
Supported Applications:	40G Ethernet (41.25Gbps), STM-256 (39.81 Gbps), OTU3 (43.01Gbps), OTU3e2 (44.58Gbps)
DDM/DOM:	Supported
Temperature Range:	Standard 0°-70°C
Connectors:	MTP/MPO
Tx Wavelength Bandwidth:	20 nm (840-860 nm)
Rx Wavelength Bandwidth:	20 nm (840-860 nm)
Minimum Transmitting Power:	Each Lane -7.6 dB
Maximum Transmitting Power:	Each Lane 1.0 dB
Receiver Sensitivity:	Each Lane -9.5 dBm
Receiver Overload:	Each Lane 2.4 dBm
Transmitter Type:	VSCEL Laser
Receiver Type:	PIN photodiode
Power:	+3.3V single power supply
Chipset:	MAXIM, MINDSPEED, SEMTECH, UX
Compliance:	802.3ba 40GBASE-SR4, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8438i, QSFP+ MSA, RoHS, SFF-8436

40G-QSFP-150 is QSFP (Quad Small Form-factor Pluggable) Transceiver, operating over 4 Paralel Lanes of Multi-Mode Fiber (MMF.) optical cable. It has minimum guaranteed optical budget of 1.9 dB, with in most cases is enough to reach about 150m distance.

However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality VSCEL Laser transmitter with operating at nominal wavelength 850 nm. and 850 nm. PIN photodiode receiver.

It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions.

All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,

We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.

We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
