| Lugar de origen: | Porcelana |
| Nombre de la marca: | FLYROM |
| Certificación: | CE ROHS FCC |
| Número de modelo: | FY-CWDM-1x2-1490 |
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | Please inquiry sales@flyromtech.net |
| Detalles de empaquetado: | Embalaje neutro |
| Tiempo de entrega: | 3~7 días laborables |
| Condiciones de pago: | LC, T/T, Western Union |
| Capacidad de la fuente: | 1000000/mes |
| Longitud de onda: | 1270 ~ 1610nm | Nombre del producto: | MUX/DEMUX |
|---|---|---|---|
| Temperatura de funcionamiento: | -40~85℃ | tipo de fibra: | Fibra dual |
| Garantía: | 3 años | Certificación: | CE RoHS FCC |
| Longitud de onda central: | ± 0,5 | Canales: | 2/4/6/8/12/16/N |
| Conector: | LC/APC, SC/LC | Temperatura de almacenamiento: | -40 ~ +85 |
| Temperatura de Opterating (℃): | -5~+75 | Solicitud: | Sistema WDM, red FTTH FTTB FTTX |

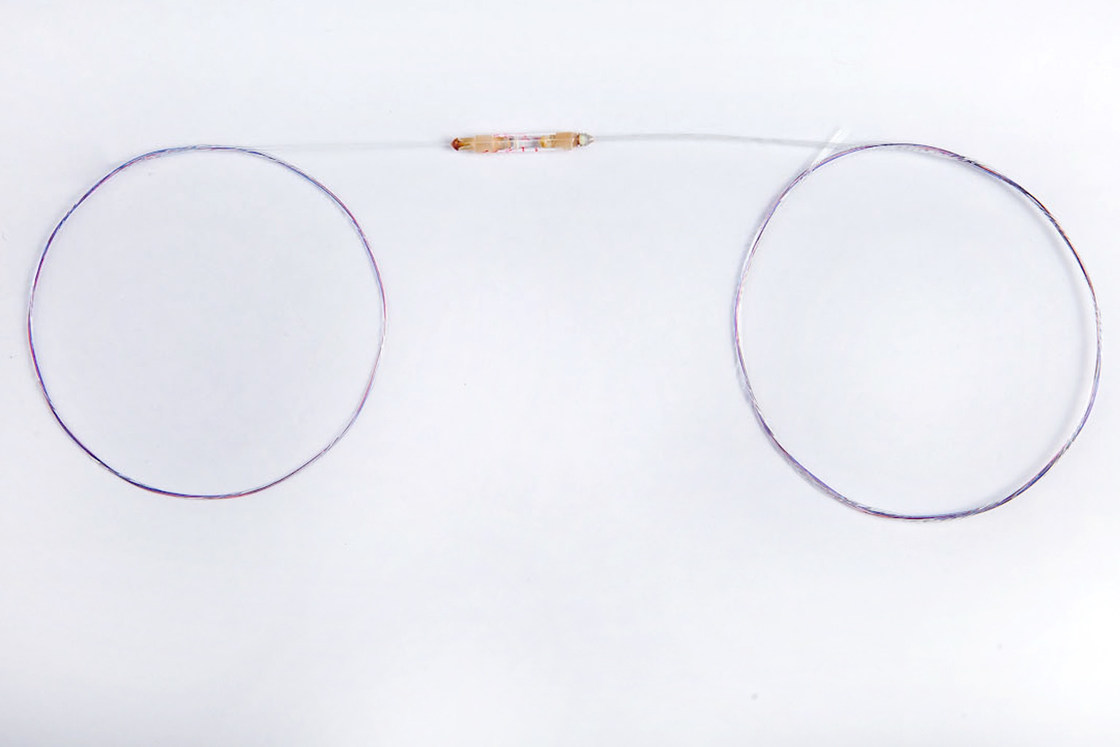

1x2 CWDM Devices 1490nm
CWDM Filter 1x2 Fiber Optical Bare Cwdm Multiplexer With Steel Tube
FLYROM offers a full range of CWDM Mux-Demux and Optical Add Drop Multiplexer (OADM) units to suit all kinds applications and network solutions. Some most common ones are: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV.
1x2 CWDM Devices are based on thin film filter technology. CWDM technology provides the flexibility to increase capacity of existing fiber infrastructure by enabling multiple channels (wavelengths) over the same fiber cabling. Each channel carries data independently from each other, allowing network designers to transport different data rates and protocols for different customers or applications.
FLYROM' 3 Port Coarse wavelength division multiplexer (CWDM Single Device) 1270nm, 1290nm, 1310nm, 1330nm, 1350nm, 1370nm, 1390nm, 1410nm, 1430nm, 1450nm, 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm or 1271nm, 1291nm, 1311nm, 1331nm, 1351nm, 1371nm, 1391nm, 1411nm, 1431nm, 1451nm, 1471nm, 1491nm, 1511nm, 1531nm, 1551nm, 1571nm, 1591nm, 1611nm in Optical Transport Networking System utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.
FLYROM 1x2 CWDM Fitler Deivce Optical Components with small size in Glass tube or Stainless Steel Tube, Its will save much space for customer applications.
| Parameter | Specification | |
| Channel Wavelength (nm) | 1260 ~ 1620 | |
| Center wavelength Accuracy (nm) | ±0.5 | |
| Channel Spacing (nm) | 20 | |
| Channel Passband (@-0.5dB bandwidth (nm) | ±7 or ±7.5nm | |
| Pass Channel Insertion Loss (dB) | ≤0.6 | |
| Reflection Channel Insertion Loss (dB) | ≤0.4 | |
| Channel Ripple (dB) | <0.3 | |
| Isolation (dB) | Adjacent | >30 |
| Non-adjacent | >40 | |
| Inertion Loss Temperature Sensitivity (dB/℃) | <0.005 | |
| Wavelength Temperature Shifting (nm/℃) | <0.002 | |
| Polarization Dependent Loss (dB) | <0.1 | |
| Polarization Mode Dispersion | <0.1 | |
| Directivity (dB) | >50 | |
| Return Loss (dB) | >45 | |
| Maximum Power Handling (mW) | 300 | |
| Opterating Temperature (℃) | -25~+75 | |
| Storage Temperature (℃) | -40~85 | |
| Package dimension (mm) | Steel Tube Φ5.5x34 | |
Note: 1. Customization is available.
2. pecified without connector, and add an additional 0.2dB loss per connector.
|
①
|
②
|
③
|
④
|
⑤
|
⑥
|
|
Wavelength
|
R- Wavelength
|
Fiber Type
|
Pigtails Diameter
|
Fiber Length
|
Connector
|
|
1270 nm
1290 nm
…
1590 nm
1610 nm
Or
1271 nm
1291 nm
…
1591 nm
1611 nm
|
A: 1270~1610
B: 1270~1450
C: 1470~1610
D: 1271~1611
E: 1271~1451
F: 1471~1611
|
1: SMF-28e
X: Others
|
25:250μm
90:900μm
XX: Others
|
05:0.5m
10:1.0m
15:1.5m
XX: Others
|
00:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
LP: LC/PC
LA: LC/APC
ST: ST/PC
XX: Others
|
Description: 1x2 CWDM Device(3 Ports),Center Wavelength 1270nm, Operating Wavelength 1270~1610nm,SMF-28e fiber, 0.9mm OD loose tube,1.0m length fiber pigtails, LC/PC connectors at all ports.
If you need to customize other specifications, please provide detailed description for your requirement.
