| Lugar de origen: | Porcelana |
| Nombre de la marca: | FLYROM |
| Certificación: | CE/ROHS |
| Número de modelo: | SFP-10GB-SR |
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | Please send inquiry to jade@flyromtech.net |
| Detalles de empaquetado: | Embalaje neutro |
| Tiempo de entrega: | 3-7 días laborables |
| Condiciones de pago: | 100% TT por adelantado |
| Capacidad de la fuente: | 1000 unidades/mes |
| Velocidad: | 10g | Interfaz: | SFP+ |
|---|---|---|---|
| Fibra: | milímetros | Longitud de onda: | 850nm |

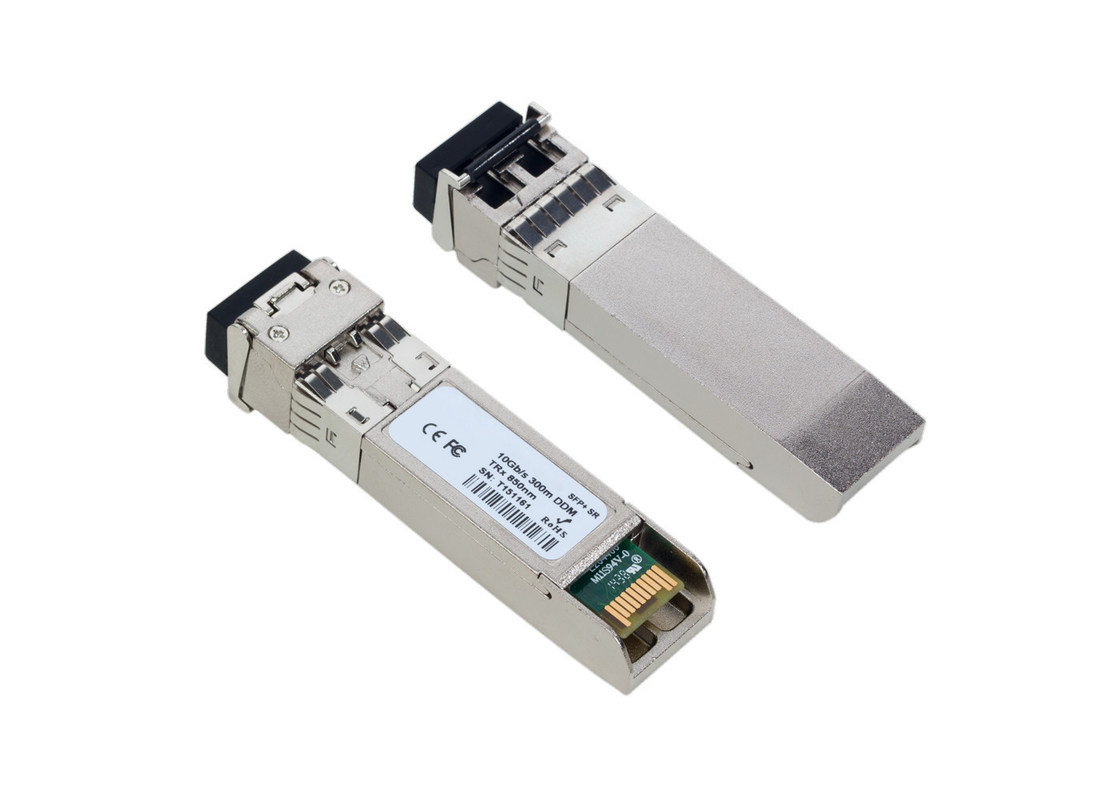

10G 850nm SR 300M SFP+ Transceiver
Features:
*Supports 9.95 to 11.3Gb/s bit rates
*Hot-Pluggable
*Duplex LC connector
*850nm VCSELtransmitter, PIN photo-detector
*MMF links up to 300m
*2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
*Power Supply :+3.3V
*Power consumption<1W
*Temperature Range: 0~ 70°C
*RoHS compliant
Applications:
| Media Type: | Multi-Mode Fiber (MMF) |
|---|---|
| TX Wavelength: | 850 nm. |
| RX Wavelenght: | 850 nm. |
| Minimum Optical Budget: | 4.6 dB |
| Maximum Distance: | 300m |
| Supported Data Rate: | 1.25-10.31 Gbps |
| Supported Applications: | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps) |
| DDM/DOM: | Support |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Rx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Minimum Transmitting Power: | -6.5 dB |
| Maximum Transmitting Power: | 1 dB |
| Receiver Sensitivity: | -11.1 dBm |
| Receiver Overload: | -1 dBm |
| Dispersion: | 110 ps/nm |
| Transmitter Type: | VSCEL Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
| Compliance: | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA |
10G-SFP-300 is Multi-Vendor MSA Compatible SFP+ (Small Form factor Pluggable) Transceiver, operating over Double Fiber Multi-Mode Fiber (MMF) optical cable. It has minimum guaranteed optical budget of 4.6 dB, with in most cases is enough to reach about 300 m distance.
It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. 10G-SFP-300 operates in Standard 0°-70°C temperature range and has Double LC interface. SFP+ support 1.25-10.31 Gbps data rate and such applications as 10G Ethernet (10.31Gbps)|Gigabit Ethernet (1.25 Gbps)|STM-64 (9.95Gbps).
We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost. All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.
We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
