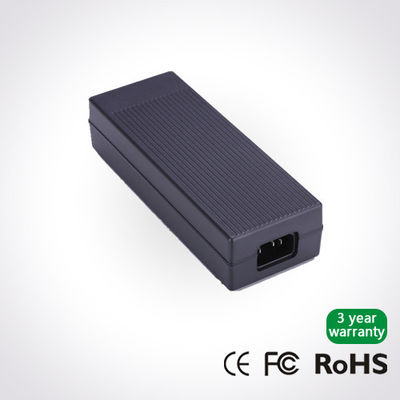

Gigabit 30W PoE Injector with IEEE803.3af/at standard for router switch wireless AP and IP Camera

Gigabit 30W PoE Injector with IEEE803.3af/at standard for router switch wireless AP and IP Camera

Product Profile

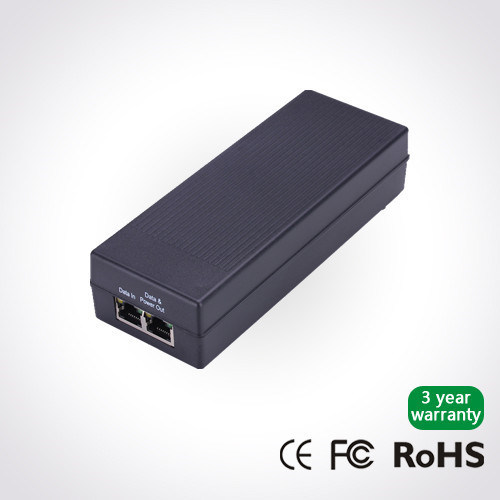

• FR-POE312-T3 is single port Gigabit PoE injector,2 RJ45 port,one is input port with Ethernet data, another is output port with power and data.Because of the injector itself has no data switching forward function, so it needs to work with network switch.
• Mixed with power and data transmission to PD through network cable. So that can solve the layout limited of power line.
• The device can carry power to PD with IEEE803.3af/at standard,such as router, switch,wireless AP, VoIP,Industrial network terminal equipment, IP Camera.
• Meet the needs of remote place without power or through Ethernet cable to power supply.
• To enhance reliability and simplify of system installation for equipment, and provide high-efficiency project solutions.


Key Features:

• Power is with input overvoltage & undervoltage, output overvoltage, each port output overcurrent short circuit protection function.
• System reliability: MTBF＞100k hours
• CE and RE,accord with EN55022, CLASS B standard.


Lightning protection performance:
AC input sustain differential mode 2KV common mode 6KV, 8/20uS Inpulse current waveform positive and negative each five times ,each time interval 1 minute PSE control segment, sustain differential mode 2KV,common mode 6KV,10/700uS inpulse current waveform. Positive and negative each five times, each time interval 1 minute ,power supply lightning protection circuit has failure alarm function and protective tube safety protective component.


Specification:



Application


Ordering Information






If any questions, please find Ms Jade
