| Lugar de origen: | Porcelana |
| Nombre de la marca: | FLYROM |
| Certificación: | CE,ROHS,FCC |
| Número de modelo: | CCWDM-18CH |
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | Please send inquiry to sales@flyromtech.net |
| Detalles de empaquetado: | Embalaje neutro |
| Tiempo de entrega: | 3-7 días laborables |
| Condiciones de pago: | T/T, LC/C |
| Capacidad de la fuente: | 1000 unidades/mes |
| 1270 nm: | 1290nm | 1310nm: | 1330NM |
|---|---|---|---|
| 1350nm: | 1370nm | 1390 nm: | 1410 nm |
| 1430 nm: | 1450nm | 1470nm: | 1490 nm |
| 1510 nm: | 1530nm | 1550nm: | 1570 nm |
| 1590nm: | 1610nm | Mejora: | UPG |

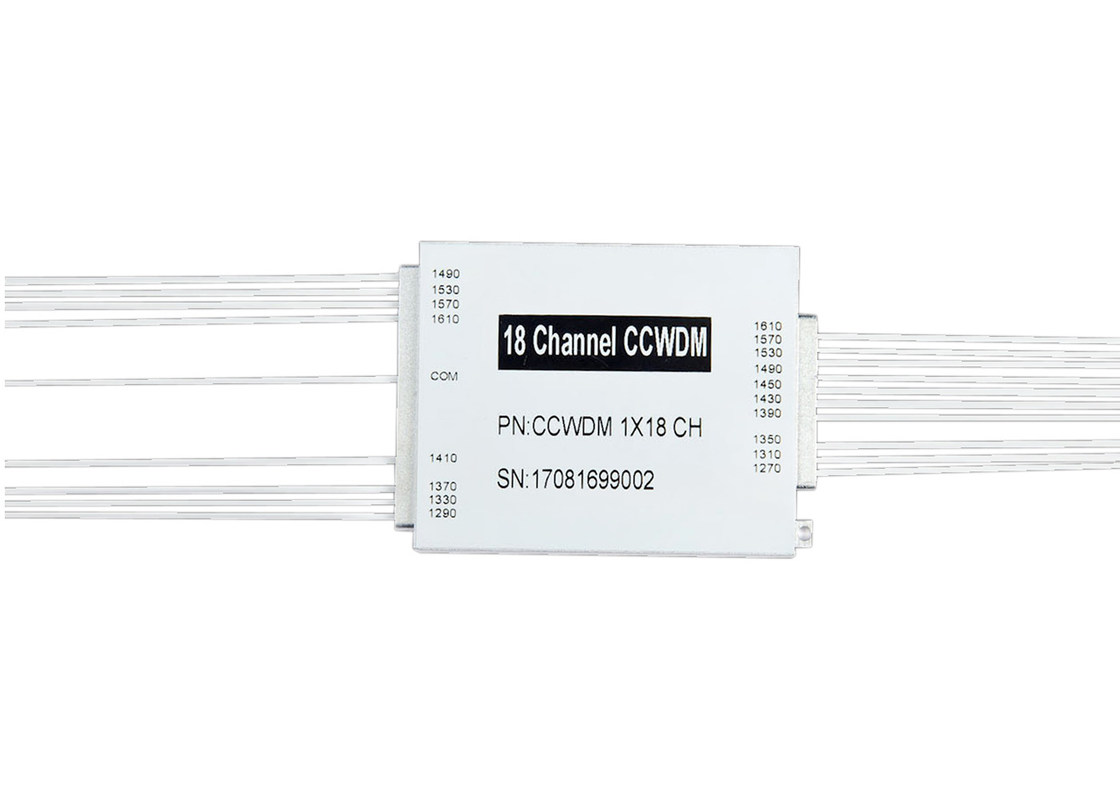

Free Space Compact CWDM 1X18 channels
| Features: |
Low Insertion Loss |
| Applications: |
Optical Add/Drop Multiplexing |
Performance Specifications
| Parameter | 10 Ch | 12 Ch | 14 Ch | 16 Ch | 18 Ch | |
| Operating Wavelength (nm) | 1260~1620 | |||||
| Channel Wavelength (nm) | 1270,1290,...,1590,1610, or 1271,1291,...,1591,1611 | |||||
| UPG Port Wavelength Range(nm) | NA | TBD | NA | 1260~1360 | 1260~1457 | |
| Channel Spacing(nm) | 20 | |||||
| Channel Passband (nm) | CWL+/-6.5nm | |||||
| Insertion Loss(dB)* | ≤2.0 | ≤2.0 | ≤2.5 | ≤2.5 | ≤2.5 | |
| Channel Ripple(dB) | ≤0.4 | |||||
|
Isolation(dB) |
Adjacent | > 30 | ||||
| Non-adjacent | > 40 | |||||
| UPG Isolation(dB) | NA | > 15 | NA | > 15 | > 15 | |
| Polarization Mode Dispersion(PS) | ≤0.2 | |||||
| Polarization Dependent Loss(dB) | ≤0.2 | |||||
| Directivity(dB) | > 45 | |||||
| Return Loss(dB) | > 45 | |||||
| Maximum Power Handling(mW) | 500 | |||||
| Operating Temperature(℃) | - 5~+70 | |||||
| Storage Temperature(℃) | - 40~85 | |||||
| Fiber Type | G657A1 | |||||
| Connector | TBD | |||||
| Package dimension(mm) | L55 x W35 x H8 or L55 x W45 x H8 | |||||
* Above specification are for device without connector.
Type 1:
Type 2:
Order Information
*Above specification are for device without connector.
| Configuration | Channel No. | Pigtail Type | Fiber length | Declension(mm) | Connector |
| CC=CCWDM |
10=10 Channel 12=12 Channel …… |
0=250um 1=900um
|
0=0.5m 1=1m |
1= L55 x W35 xH8 2= L55 x W45 x H8 |
0=None 5=others |
