| Modo: | SM o MM | Modelo de control: | Enclavamiento o no enclavamiento |
|---|---|---|---|
| Tipo de voltaje: | 3V o 5V | tipo de fibra: | 50/125 62.5/125 9/125 |
| Diámetro de fibra: | 250 um 900 um 2,0 mm 3,0 mm | Longitud de la fibra: | 1m 1,5m |
| Conector: | FC/APC FC/PC SC/APC SC/PC ST/PC LC/PC LC/APC Otros | Longitud de onda: | 850 nm 1310 nm 1490 nm 1550 nm 1625 nm 1650 nm 1310/1550 nm Otros |

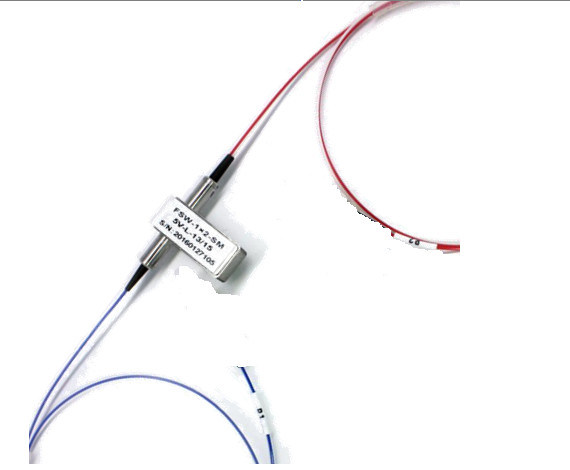

1x1 Mechanical Optical Switch
| Features | Application |
|
|
Description:
It’s a passive component used for OADM system, OXC, monitor system and experience.
| Model | FLY-1X1-SM | |
| Operating wavelength | nm | 850/1310±40 |
| Insertion loss | dB | Typ:0.6 Max:1.0 |
| Return loss | dB | MM≥30 |
| Cross talk | dB | MM≥35 |
| PDL | dB | ≤0.05 |
| WDL | dB | ≤0.25 |
| TDL | dB | ≤0.25 |
| Repeatability | dB | ≤±0.02 |
| Voltage | v | 2.5~6 |
| Operating life | Time | ≥107 |
| Switch time | ms | ≤8 |
| Power handling | mW | ≤500 |
| Operating temperature | ℃ | -20～+70 |
| Storage temperature | ℃ | -40～+85 |
| Fiber color | P1 red P2 black or Other | |
| Size | mm | 27.0×12×8.2 |
| Fiber Type | SM28E With 0.5~1m 900um loose tube |
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors.
Pin Definition:
| Type | Pin definition | Power | Condition monitoring | ||||||
| FSW-1x1 | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 | |
| Non-latching | ----- | -- | -- | GND | V+ | Close | Open | Open | Close |
| P1 - P2 | V+ | -- | -- | GND | Open | Close | Close | Open | |
| Type | Pin definition | Power | Condition monitoring | ||||||
| FSW-1x1 | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 | |
| Latching | ----- | -- | -- | -- | -- | Close | Open | Open | Close |
| P1 - P2 | V+ | GND | -- | -- | Open | Close | Close | Open | |
| Path Diagram | Production Size |
 |
|
Order Information:
| XXXX— | XX— | XXXX | |||
| Wavelength | Operating Voltage | Fiber Type | Tube Type | Fiber Length | Connector |
|
0850—850 1315—1310&1550 …… |
3L—3v, latching 5L—5v, latching 3N—3v, Non-latching 5N—5v, Non-latching |
1—SM 2—MM 62.5/125 3—MM 50/125
|
1—250um 2—900um
|
00—special 05—0.5m±5cm 10—1m±5cm 15—1.5m±5cm 20—2 m …… |
0—NO 1—FC/PC 2—FC/APC 3—SC/PC 4—SC/APC 5—LC/PC 6—LC/APC 7—Other |
