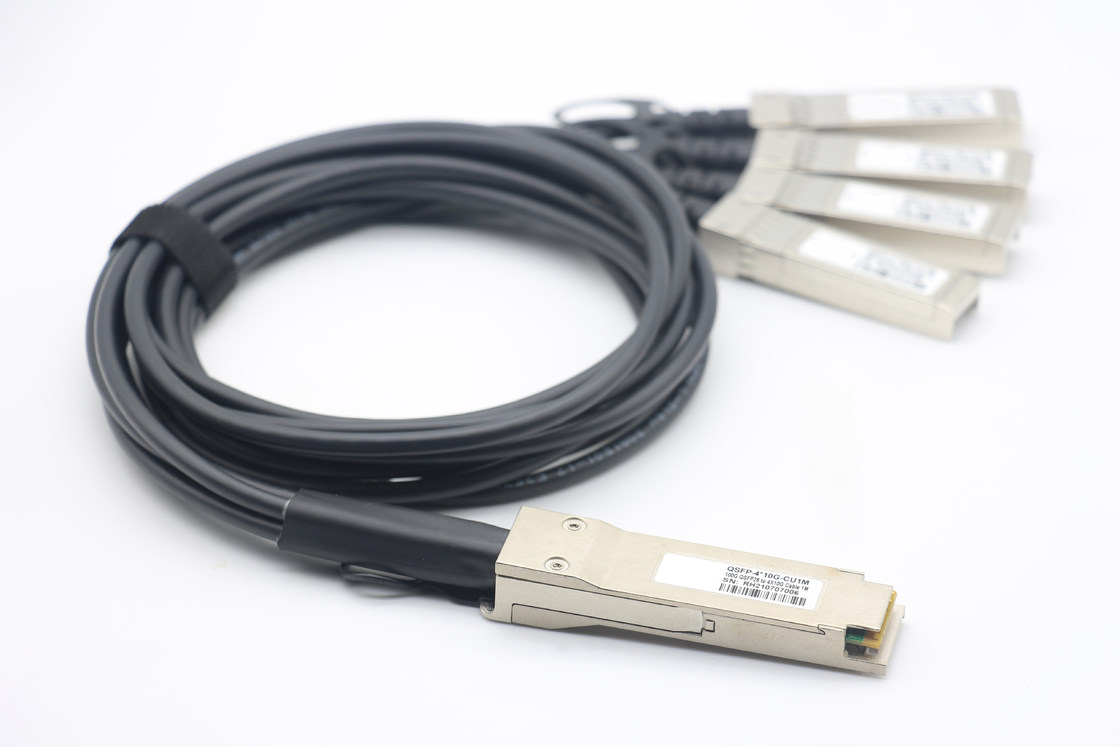

40G QSFP+ to 4x 10G SFP+ Direct Attach Passive Copper cable 1M 30AWG

40G QSFP+ to 4x 10G SFP+ Direct Attach Passive Copper cable

Optical 40G QSFP+ to 4x 10G SFP+ Direct Attach Passive Copper cable     FY-DAC4x10G-CU1M

40G QSFP+ to 4x 10G SFP+ direct attach passive copper cable are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ and SFP+ equipment connections. These cables are used for 40GbE and Infniband standards, to maximize performance. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s. This interconnect system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA (InfiniBand Trade Association). The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (40 Gb/s) and Infiniband QDR ( 4x10 Gb/s per channel) specifications.

Features

• Connector A: (1) QSFP 40.0 Gbps Rated Connector (SFF-8436 Compliant)
• Connector B: (4) SFP+ 10.0 Gbps Rated Connectors (SFF-8431 Compliant)
• Economically Links up a QSFP port with an Upstream 10GbE-SFP+ Switch
• Protocol agnostic support of 40GbE, QDR InfiniBand, SAS & Fibre Channel
• Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate)
• Robust Zinc die-cast SFP+ & QSFP connectors with pull-to-release latching
• Bridge the gap between your 10G and 40G capable switches/host adapters
• Low cross-talk and pair-to-pair skew maintains signal integrity
• Fully compliant to the latest SFP+ & QSFP MSA (Multi-Source-Agreement)
• Supports all current 10-Gigabit Ethernet and 40-Gigabit Ethernet standards
• Designated form factor and electrical compliance for QDR InfiniBand
• The perfect direct attached storage splitter cable for Fibre Channel & SAS
• Enjoy a reduced power budget and lower port cost compared to optical
• Fully RoHS compliant for environmental protection

Applications

• 10G/40G Ethernet
• InfiniBand 4x SDR/DDR/QDR
• 2/4/8/10G Fibre Channel
• Fibre Channel over Ethernet
• SAS, Servers, Hubs, Switches, and Routers

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery

Mechanical Dimensions

Order Information:

Specification:

If any questions, please find Ms Jade
