| Lugar de origen: | Porcelana |
| Nombre de la marca: | FLYROM |
| Certificación: | CE,ROHS |
| Número de modelo: | FY-QSFP-4X10G-AOC50M |
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | Please send inquiry to sales@flyromtech.net |
| Detalles de empaquetado: | Embalaje neutro |
| Tiempo de entrega: | 3-7 días laborables |
| Condiciones de pago: | T/T, LC/C |
| Capacidad de la fuente: | 1000 unidades/mes |
| Garantía: | 3 años | Velocidad de datos: | 40G a 4x10G |
|---|---|---|---|
| Certificación: | CE RoHS FCC | Nombre del producto: | Cable AOC QSFP+ de 40 Gb/s a 4X SFP+ |
| Conector: | Paquete Qsfp+ y SFP+ | Compatible: | QSFP+ /SFP+MSA,H3C,Cisco,Juniper,Juniper/Cisco/Huawei/Brocade/Dell/HP/Extreme/ARISTA/H3C, etc. |
| Solicitud: | Centro de datos, Ethernet 40/10GBASE-SR/SW 40G/10G, telecomunicaciones, Plug-and-Play | Temperatura: | 0 a +70°C |
| Longitud: | 50M | Tipo de cable: | Cable óptico |

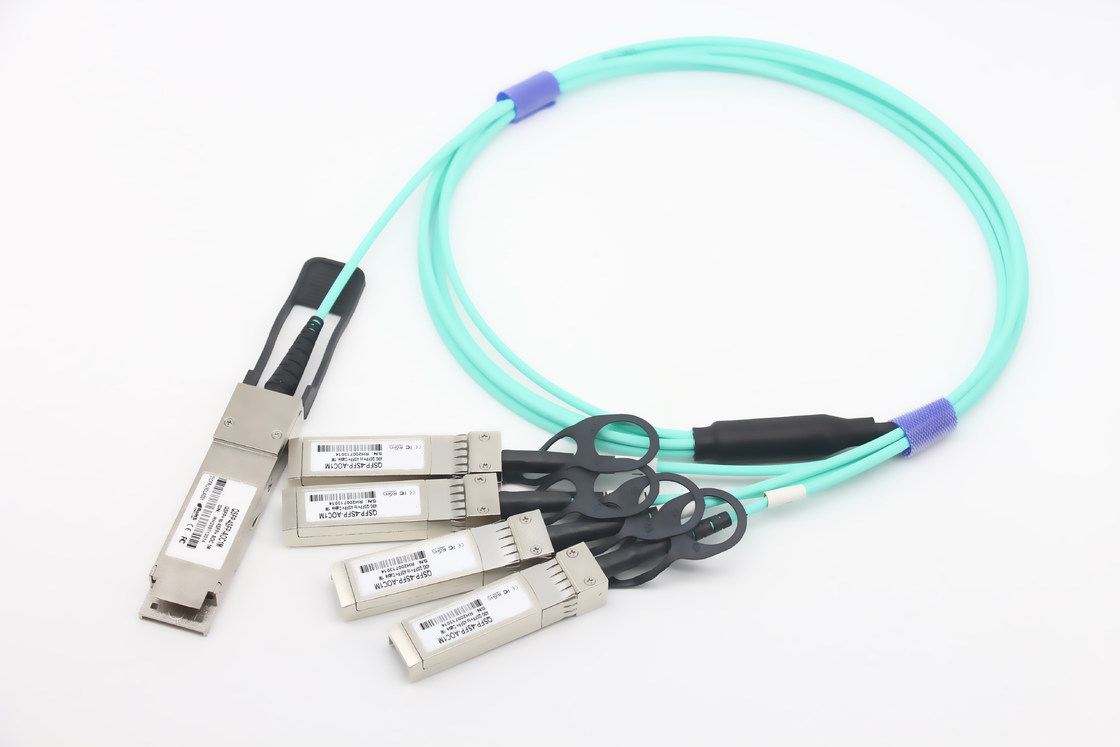

40G QSFP+ to 4x 10G SFP+ breakout Active Optical Cables (AOCs) offer IT professionals a cost-effective interconnect solution for merging 40G QSFP+ and 10G SFP+ enabled host adapters, switches and servers.
For typical applications, users can install this breakout or splitter cable between an available QSFP+ port on 40GE switch and feed up to 4 upstream SFP+ enabled 10GE switches. Each cable features a single SFF-8436 compliant QSFP+ connector rated for 41.2Gb/s on one end and 4 SFF-8431 complicant SFP+ connectors rated for 10.3Gb/s each on the other end.
Features
Applications
Specifications
| Parameter | Description |
| Module Form Factor | QSFP+ (Supports SFF8436) to 4X SFP+ |
| Protocols Supported | InfiniBand, Ethernet, Fiber Channel |
| Channel Data Rate | Rate 1 to 41.25Gbps |
| BER | <10-12 |
| Operating Case Temperature | 0 to + 70ºC |
| Storage Temperature | -20 to + 85ºC |
| Supply Voltage | 3.3V |
| Supply current | 230mA per end typical |
| Management Interface Serial | I2C (Supports SFF8436) |
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
Ordering Information:
| Part Number | Product Description |
| FY-QSFP-4X10G-AOCXXXM | 40Gb/s QSFP+ – 4x10G SFP+ Active Optical Cable |
Notes:
where "xx" denotes cable length in meters. Examples are as follows:
xx = 03 for 3m, xx = 10 for 10m, xx = 50 for 50m, xx = A0 for 100m
