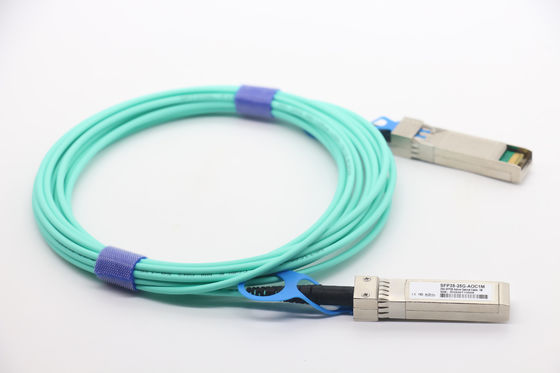

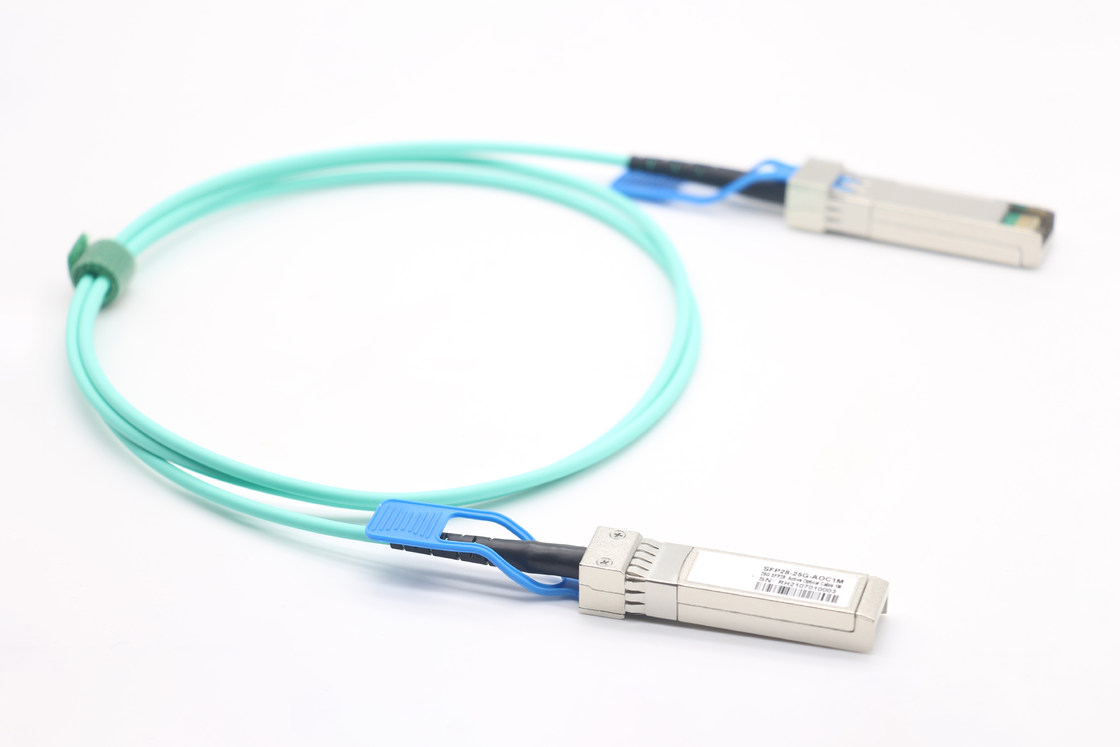

Name: 1m Cisco Compatible FY-SFP28-25G-AOC1M 25G SFP28 to SFP28 Active Optical Cable
Brand: Flyrom Technology Co.,Limited
SKU: FY-SFP28-25G-AOC1M
Availability: InStock

Inicio Productos Cables ópticos activos

1m Cisco Compatible FY-SFP28-25G-AOC1M 25G SFP28 to SFP28 Active Optical Cable

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	FLYROM
Certificación:	CE,ROHS
Número de modelo:	FY-SFP28-25G-AOC1M

Pago y Envío Términos:

Cantidad de orden mínima:	1 pieza
Precio:	Please send inquiry to sales@flyromtech.net
Detalles de empaquetado:	Embalaje neutro
Tiempo de entrega:	3-7 días laborables
Condiciones de pago:	T/T, LC/C
Capacidad de la fuente:	1000 unidades/mes

Contactar ahora

Descripción detallada del producto

Garantía:	3 años	Velocidad de datos:	25g
Certificación:	CE RoHS FCC	Nombre del producto:	Cable AOC SFP28 de 25 Gb/s
Conector:	Paquete SFP28	Compatible:	SFP28 MSA, H3C, Cisco, Juniper, Juniper/Cisco/Huawei/Brocade/Dell/HP/Extreme/ARISTA/H3C, etc.
Solicitud:	Centro de datos, Ethernet 25GBASE-SR/SW 10G, telecomunicaciones, Plug-and-Play	Temperatura:	0 a +70°C
Longitud:	1m	Tipo de cable:	Cable óptico

1m Cisco Compatible FY-SFP28-25G-AOC1M 25G SFP28 to SFP28 Active Optical Cable (SFP28 to SFP28)

The Cisco Compatible SFP+ Active Optical Cables are 25G SFP28 Active Optical Cables (AOCs) are direct-attach fiber assemblies with SFP28 connectors, compliant with 25G Ethernet IEEE 802.3by 25GBASE-SR standard. They are suitable for short distances and offer a cost-effective solution to connect within racks and across adjacent racks. The length is up to 70 meters using OM3 MMF.

Features

Hot-pluggable SFP28 form factor
Electrical interface compliant to SFF-8431
850nm VCSEL laser and PIN photo-detector
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
Digital diagnostics functions are available via the I2C interface
Operating case temperature range 0°C to +70°C
3.3V power supply voltage
RoHS-6 compliant

Applications

25GBASE-SR Ethernet
InfiniBand QDR, SDR, DDR
Servers, switches, storage and host card adapters

Specifications

Parameter	Description
Module Form Factor	SFP28
Protocols Supported	InfiniBand, Ethernet, Fiber Channel
Channel Data Rate	Rate 1 to 41.25Gbps
BER	<10-12
Operating Case Temperature	0 to + 70ºC
Storage Temperature	-20 to + 85ºC
Supply Voltage	3.3V
Supply current	230mA per end typical
Management Interface Serial	I2C (Supports SFF8436)

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

Mechanical Design Diagram:

1m Cisco Compatible FY-SFP28-25G-AOC1M 25G SFP28 to SFP28 Active Optical Cable

Ordering Information:

Part Number	Product Description	Fiber Spec.
FY-SFP28-25G-AOC1M	25G SFP28 Active Optical Cable 1Meters	OM3 MMF without UL Certification(xxx≤70 meter)
FY-SFP28-25G-AOC3M	25G SFP28 Active Optical Cable 3Meters	OM3 MMF without UL Certification(xxx≤70 meter)
FY-SFP28-25G-AOC5M	25G SFP28 Active Optical Cable 5Meters	OM3 MMF without UL Certification(xxx≤70 meter)
FY-SFP28-25G-AOC10M	25G SFP28 Active Optical Cable 10Meters	OM3 MMF without UL Certification(xxx≤70 meter)
FY-SFP28-25G-AOC30M	25G SFP28 Active Optical Cable 30Meters	OM3 MMF without UL Certification(xxx≤70 meter)
FY-SFP28-25G-AOC50M	25G SFP28 Active Optical Cable 50Meters	OM3 MMF without UL Certification(xxx≤70 meter)
FY-SFP28-25G-AOC100M	25G SFP28 Active Optical Cable 100Meters	OM4 MMF without UL Certification(70＜xxx≤100meter)
