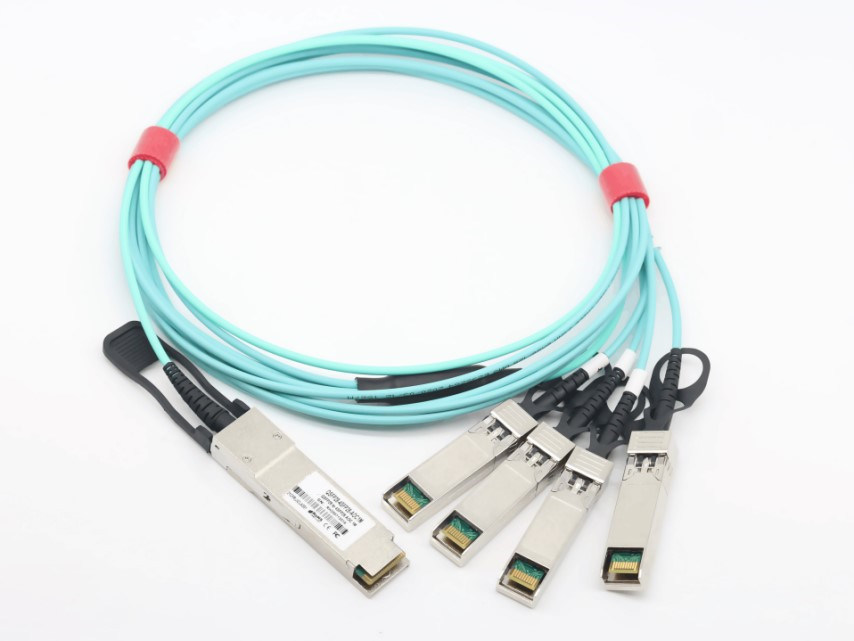

15m Cisco Compatible FY-QSFP28-4SFP25-AOC15M 100Gb/s QSFP28 to 4x25G SFP28 AOC Breakout Active Optical Cable

15m Cisco Compatible FY-QSFP28-4SFP25-AOC15M 100Gb/s QSFP28 to 4x25G SFP28 AOC Breakout Active Optical Cable

(QSFP28 to 4XSFP28)



100G QSFP28 to 4x 25G SFP28 Active Optical Cables (AOC) offer IT professionals a cost-effective interconnect solution for merging 100G QSFP28 and 25G SFP28 enabled host adapters, switches and servers.For typical applications, users can install this breakout or splitter cable between an available QSFP28 port on 100GE switch and feed up to 4 upstream SFP28 enabled 25GE switches. Each cable features a single SFF-8436 compliant QSFP28 connector rated for 103Gb/s on one end and 4 SFF-8431 complicant SFP28 connectors rated for 25.78Gb/s each on the other end.



Features

• SFF-8436 compliant QSFP28 connector
• 4x SFF-8431 compliant SFP28 connectors
• Hot-pluggable electrical interface
• 850nm VCSEL transmitter
• PIN photo-detector receiver
• Internal CDR circuits on both receiver and transmitter channels
• Low power consumption < 2.5W (QSFP28) < 1W (SFP28)
• Length up to 70m using OM3 MMF and 100m using OM4 MMF
• Operating case temperature range 0°C to +70°C
• All-metal housing for superior EMI performance
• RoHS-6 compliant (lead free)



Applications

• IEEE 802.3bm 100GBASE-SR4
• IEEE 802.3by 25GBASE-SR
• InfiniBand SDR/DDR/QDR
• High-Performance Computing (HPC) clusters
• Servers, switches, storage and host card adapters



Specifications

Parameter	Description
Module Form Factor	QSFP28 (Supports SFF8431/SFF8432/SFF8472)
Protocols Supported	InfiniBand, Ethernet, Fiber Channel
Channel Data Rate	Rate 1 to 103.125Gbps
BER	<10-12
Operating Case Temperature	0 to + 70ºC
Storage Temperature	-20 to + 85ºC
Supply Voltage	3.3V
Supply current	230mA per end typical
Management Interface Serial	I2C (Supports SFF8472)























































Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery







Ordering Information:

Part Number	Product Description
FY-QSFP28-4X25G-AOCXXXM	100Gb/s QSFP28 – 4x25G SFP28 Active Optical Cable



Notes:

where "xx" denotes cable length in meters. Examples are as follows:

xx = 03 for 3m, xx = 10 for 10m, xx = 50 for 50m, xx = A0 for 100m
