Name: 2m Cisco Compatible FY-AOC100G-AC2M 100G QSFP+ Active Optical Cable
Brand: Flyrom Technology Co.,Limited
SKU: FY-AOC100G-AC2M
Availability: InStock

Inicio Productos Cables ópticos activos

2m Cisco Compatible FY-AOC100G-AC2M 100G QSFP+ Active Optical Cable

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	FLYROM
Certificación:	CE,ROHS
Número de modelo:	FY-AOC100G-AC2M

Pago y Envío Términos:

Cantidad de orden mínima:	1 pieza
Precio:	Please send inquiry to sales@flyromtech.net
Detalles de empaquetado:	Embalaje neutro
Tiempo de entrega:	3-7 días laborables
Condiciones de pago:	T/T, LC/C
Capacidad de la fuente:	1000 unidades/mes

Contactar ahora

Descripción detallada del producto

Garantía:	3 años	Velocidad de datos:	100G
Certificación:	CE RoHS FCC	Nombre del producto:	Cable AOC QSFP28 de 100 Gb/s
Conector:	Paquete Qsfp28	Compatible:	QSFP28 MSA, H3C, Cisco, Juniper, Juniper/Cisco/Huawei/Brocade/Dell/HP/Extreme/ARISTA/H3C, etc.
Solicitud:	Centro de datos, Ethernet 100GBASE-SR/SW 100G, telecomunicaciones, Plug-and-Play	Temperatura:	0 a +70°C
Longitud:	2m	Tipo de cable:	Cable óptico

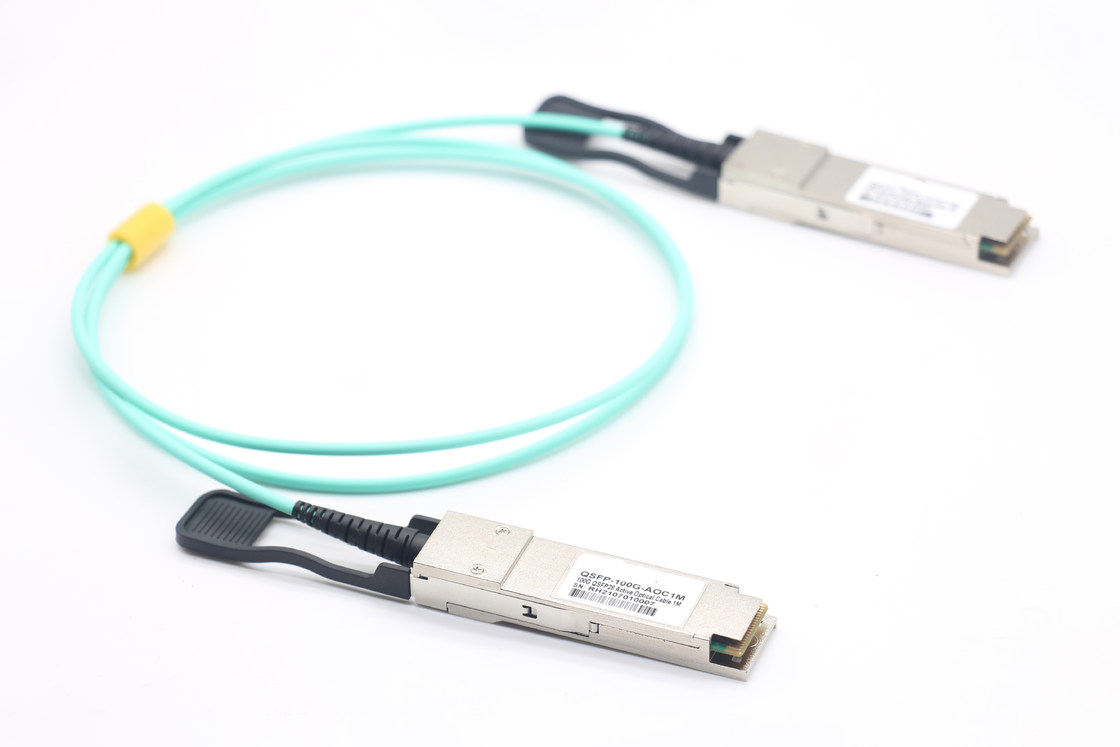

2m Cisco Compatible FY-AOC100G-AC2M 100G QSFP28 to QSFP28 Active Optical Cable (QSFP28 to QSFP28)

The Cisco Compatible QSFP28 Active Optical Cables is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ SR4 for 100 or 40 Gigabit Ethernet , Infiniband FDR/EDR Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate at 25Gbps ,up to 70 m using OM3 fiber or 100 m using OM4 fiber.

Features

Four-channel full-duplex active optical cable
Multirate capability: 10 Gb/s and 25 Gb/s per channel
QSFP28 high-density form factor
Reliable VCSEL array technology using multimode fiber
power dissipation: <3.5W per cable end
Commercial operating case temperature range: -40 ºC to 70 ºC
UL certification optional cables
Hot Pluggable

Applications

IEEE 802.3bm 100GBASE SR4 and
40GBASE SR4128G Fiber Channel
Infiniband FDR/EDR

Specifications

Parameter	Description
Module Form Factor	QSFP28 (Supports SFF8431/SFF8432/SFF8472)
Protocols Supported	InfiniBand, Ethernet, Fiber Channel
Channel Data Rate	Rate 1 to 103.125Gbps
BER	<10-12
Operating temp. range (cage temperature)	-5 °C to + 85 °C (normal handing) -10 °C to +95 °C (performance degradation is acceptable in this range)
Iransport temp.range (in packed condition)	-40 ℃ to +70 ℃
Storage temp. range (in packed condition)	-25 ℃ to +55 °C
Supply Voltage	3.3V
Supply current	230mA per end typical
Management Interface Serial	I2C (Supports SFF8472)

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

Mechanical Dimensions:

2m Cisco Compatible FY-AOC100G-AC2M 100G QSFP+ Active Optical Cable

Ordering Information:

Part Number	Product Description	Fiber Spec.
FY-AOC100G-AC1M	100G QSFP+ Active Optical Cable 1Meters	OM2or OM3
FY-AOC100G-AC3M	100G QSFP+ Active Optical Cable 3Meters	OM2or OM3
FY-AOC100G-AC5M	100G QSFP+ Active Optical Cable 5Meters	OM2or OM3
FY-AOC100G-AC10M	100G QSFP+ Active Optical Cable 10Meters	OM2or OM3
FY-AOC100G-AC30M	100G QSFP+ Active Optical Cable 30Meters	OM3
FY-AOC100G-AC50M	100G QSFP+ Active Optical Cable 50Meters	OM3
FY-AOC100G-AC100M	100G QSFP+ Active Optical Cable 100Meters	OM3
