CWDM Multiplexer & Demultiplexer

CWDM multiplexer and demultiplexer,

• CWDM Multiplexer only or CWDM Demultiplexer only are optional, low-cost solution that enables the expansion of existing fiber capacity and let operators make full  use of available fiber bandwidth in local loop and enterprise architectures.
• FLYROM CWDM Mux/Demux is a universal device capable of multiplex multiple CWDM (1270~1610nm) up to 18 channels or optical signals into a fiber pair or single fiber.
• FLYROM provide full complete configuration like 2, 4, 5, 8, 9, 16, 18 channels. Optional wide band for existing 1310nm or 1550nm to multiplex with these CWDM channels. Fully utilize with the existing equipments.
• Together with our CWDM transceivers or the wavelength converters, the bandwidth of the fiber can be utilized in a cost effective way.

Key Features:

• Passive CWDM multiplexer/demultiplexer with 2, 4, 5, 8, 9, 16 or 18 channelss
• Compliant to ITU-T G.694.2 CWDM standard or G.695
• Optional extension and wide band ports for network upgrade, existing equipment or add-and-drop
• Up to 10Gbit/s per channel
• Low-cost transceivers applicable, existing equipment can still be used
• Metro distance, up to 80 km
• Fully transparent to all data rates and protocols
• Entirely passive device, no power supply needed

Packaging:

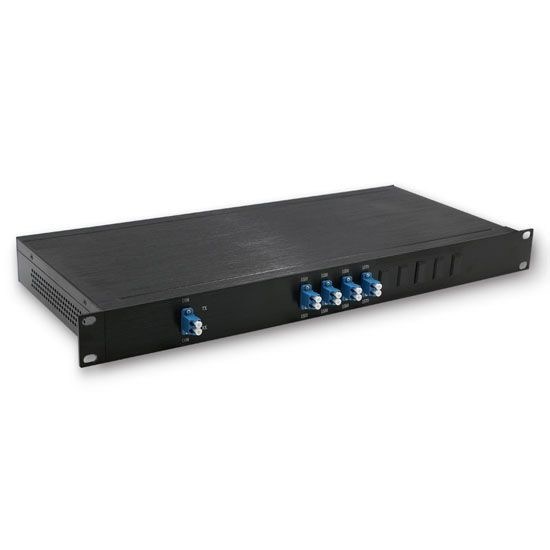

• A. 19’’ 1RU Rack chassis or 23’’ 1RU Rack chassis
• B. LGX-Three Metal Box Standard (Fit to Empty 4RU 19 inch Rack Mount that hold 12pcs standard LGX box)
• LGX-Two Metal Box (Fit to Empty 1RU 19 inch Rack Mount that hold 4pcs LGX-Two box)
• LGX-One Metal Box (Fit to Empty 1RU 19 inch Rack Mountthat hold 2pcs LGX-One box)
• C. Field module type ABS box
• D. Empty 1RU, 2RU Rack chassis and 4RU Rach Chassis on optional

CWDM MUX AND DEMUX EXAMPLE TYPES:

Specification:

Application:

Ordering Information

If any questions, please find Ms Jade
