| Lugar de origen: | Porcelana |
| Nombre de la marca: | FLYROM |
| Certificación: | CE,ROHS,FCC |
| Número de modelo: | FY-MUX-08CH |
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | Please send inquiry to sales@flyromtech.net |
| Detalles de empaquetado: | Embalaje neutro |
| Tiempo de entrega: | 3-7 días laborables |
| Condiciones de pago: | T/T, LC/C |
| Capacidad de la fuente: | 1000 unidades/mes |
| Longitud de onda: | 1270 ~ 1610nm | Nombre del producto: | MUX/DEMUX |
|---|---|---|---|
| Temperatura de funcionamiento: | -40~85℃ | tipo de fibra: | Fibra dual |
| Garantía: | 3 años | Certificación: | CE RoHS FCC |
| Longitud de onda central: | Rejilla del ITU 100GHz | Espaciado de canales: | 100 GHz |
| Canales: | 2/4/6/8/12/16/N |

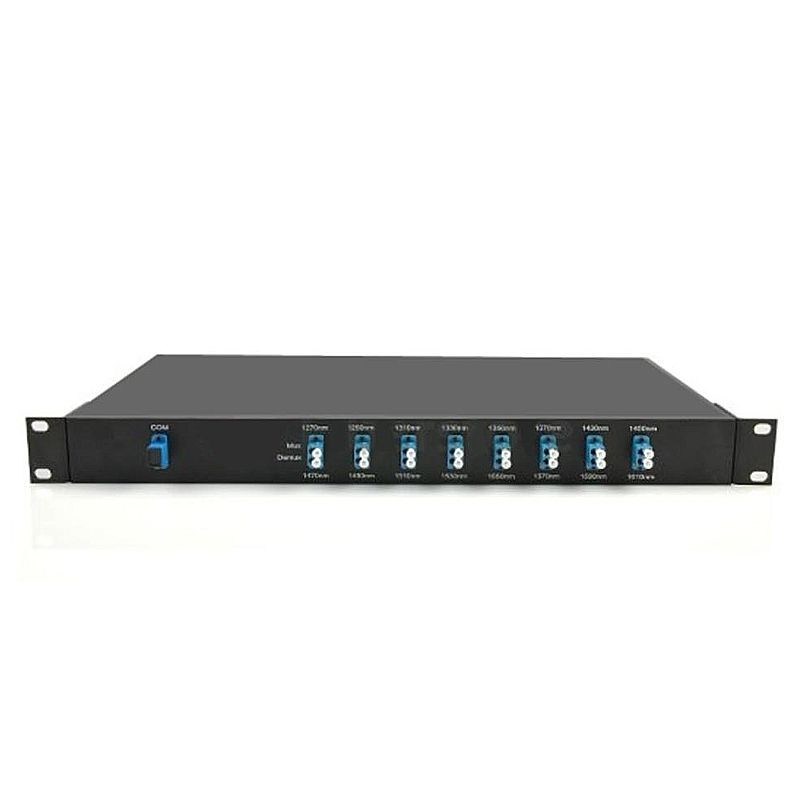

8 Channels 1RU Rack Mount Duplex CWDM MUX DEMUX
CWDM (Coarse Wavelength Division Multiplexing) MUX and DEMUX is a reliable, cost effective solution for fiber exhaust and multi-service applications. It lets operators make full use of available fiber bandwidth in the local loop and enterprise architectures. The CWDM MUX & DEMUX over dual fiber is a universal device capable of coming up to 18 optical signals into a fiber pair. It can support up to 18 CWDM wavelengths between ITU-T G.694.2 1270 nm to 1610 nm in 20 nm increments or ITU-T G.652 1270 nm and 1290 nm.
We provide a complete portfolio of CWDM MUX DEMUXover dual fiber or simplex fiber, with packages of 19" 1U rack mount chassis, LGX Metal box or Plastic ABS box, custom wavelength channels are available
Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over two fibers.
Mix of Services Multiplexing at Any Rate. Flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, 8G/16G FC, SAN, OTN, SDH/SONET and native video services, it's transparent to any rate, any service multiplexing and upgrade.
FLYROM CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.
FLYROM provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port,Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.
Front Panel Details
Wavegate front panel detaild example
| FY-MUXS-XXX | － | X | X(The number of channel) | X(Channel Spacing) |
|
OD=DEMUX OM=MUX ODM=MAX/DEMAX |
04=4CH 08=8CH |
25G: 25GHz 50G: 50GHz 100G: 100GHz 200G: 200GHz C:CWDM |
